Aqueous System

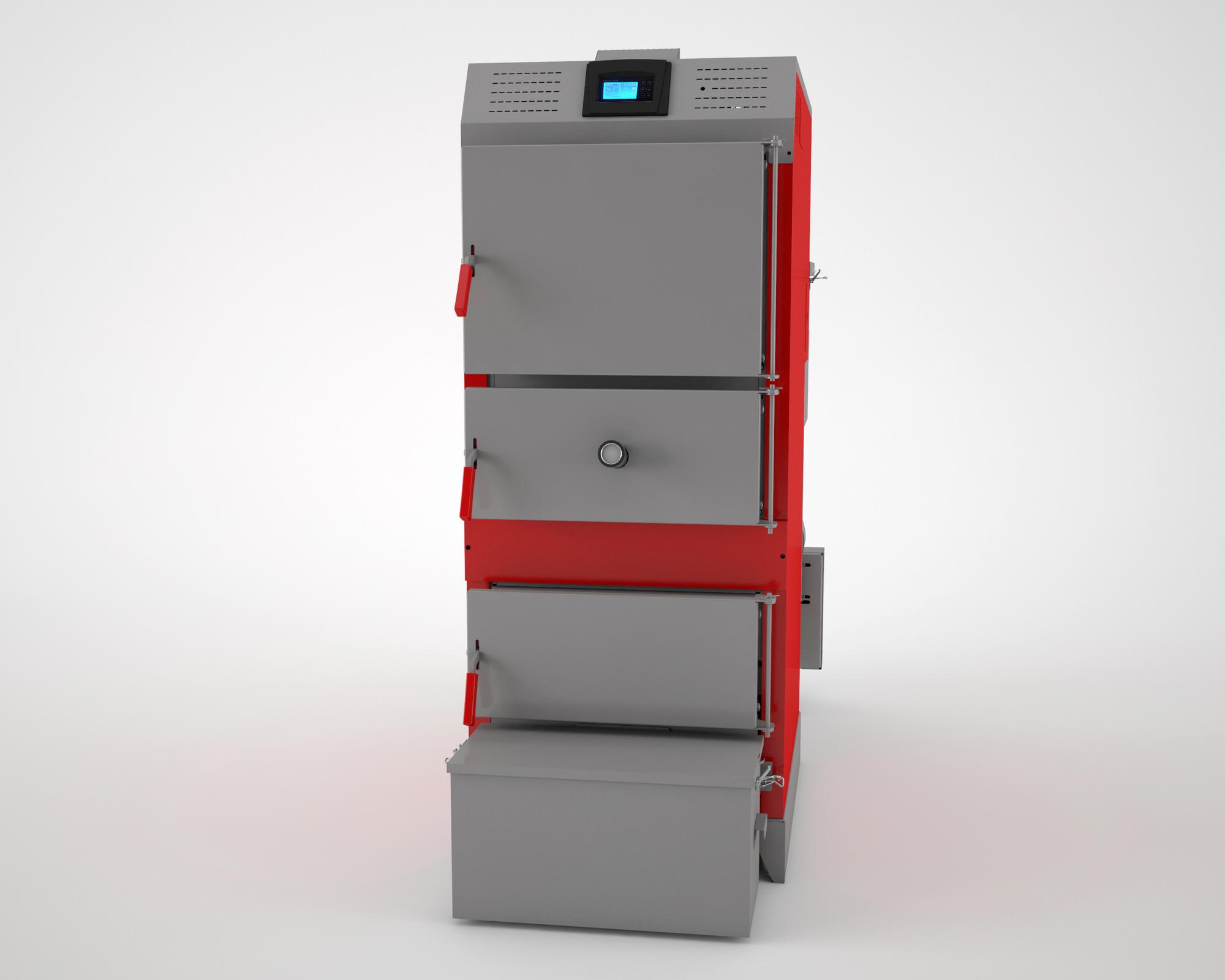

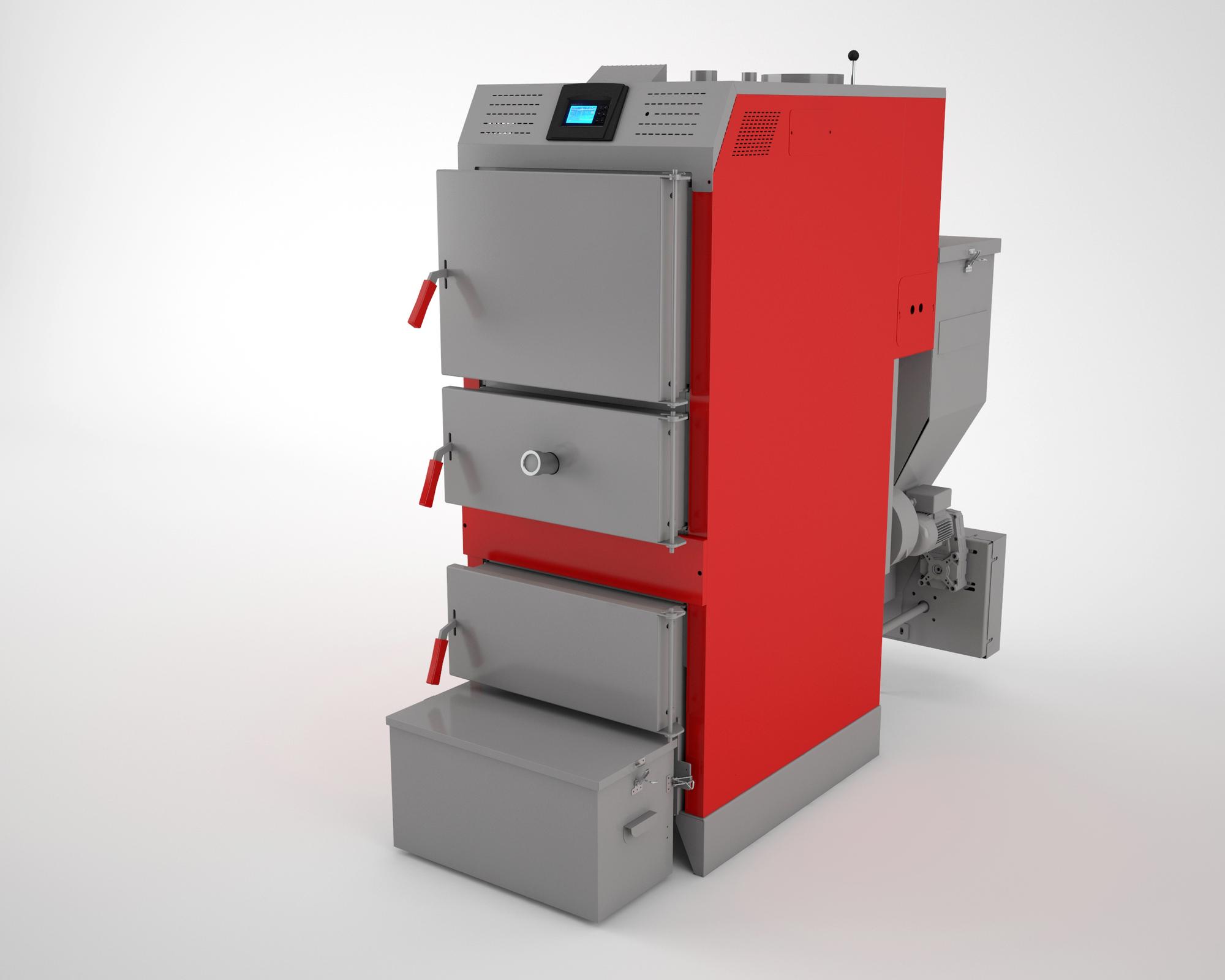

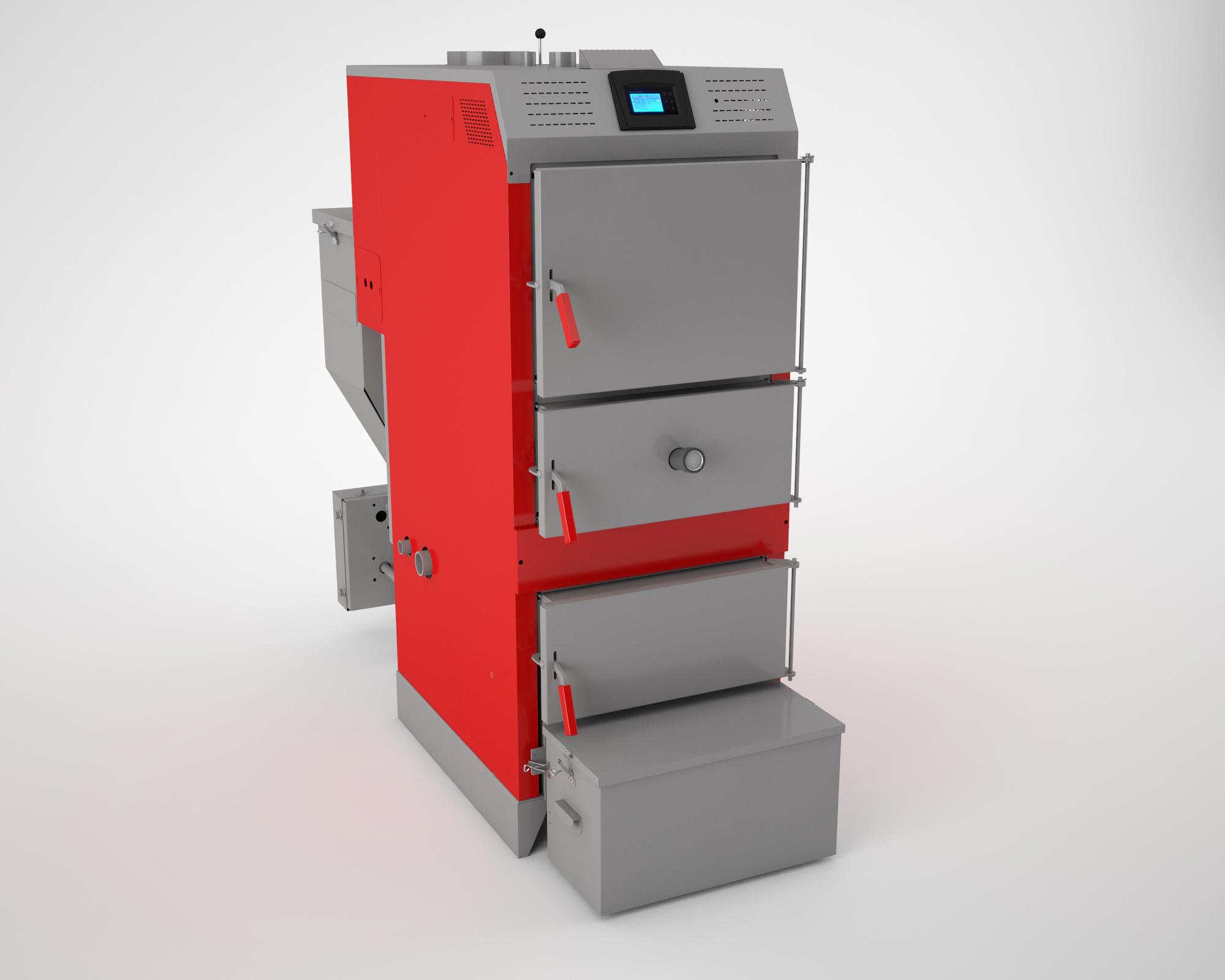

KOZ-WOOD Series is a flexible heating solution that can work not only with coal but also with wood thanks to its water system grate.
Color Option
Red
Automatic fuel loading, automatic ignition,
automatic mixing,
offering features like
Our Koz Wood series device provides you
with the most efficient
designed to serve.
General Features
Technical Specifications
Documents
Images & Videos
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
The slag layer that forms on the top of the coal can cause flame attenuation and leads to waste of unburned coal. However, Automatic Mixing Our Featured Stove eliminates this problem and provides 100% efficient combustion. provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimizes energy losses. High efficiency, maximum Stay one step ahead for performance now!
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system that meets your water needs offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
Thanks to the Sleep Mode, your boiler is automatically ignited and can be used for long periods of time. certain hours to keep the fire alive during waiting periods periods. This innovative feature ensures uninterrupted comfort and offers maximum energy savings. Your heat is always at the ideal level, energy your productivity at the highest level!
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
The slag layer that forms on the top of the coal can cause flame attenuation and leads to waste of unburned coal. However, Automatic Mixing Our Featured Stove eliminates this problem and provides 100% efficient combustion. provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimizes energy losses. High efficiency, maximum Stay one step ahead for performance now!
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system that meets your water needs offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
Thanks to the Sleep Mode, your boiler is automatically ignited and can be used for long periods of time. certain hours to keep the fire alive during waiting periods periods. This innovative feature ensures uninterrupted comfort and offers maximum energy savings. Your heat is always at the ideal level, energy your productivity at the highest level!
By rotating the auger with the help of the electronic fuel supply motor It offers 'Automatic Refueling'. In this way, you can you can warm up without getting up and with balanced fuel consumption.
Of course, you do not need to ignite the loaded fuel with your hand. Device fuel level automatically according to the temperature value you set. and then it will take as little as 5 minutes to get it working. in which the ignition will be carried out automatically.
The slag layer that forms on the top of the coal can cause flame attenuation and leads to waste of unburned coal. However, Automatic Mixing Our Featured Stove eliminates this problem and provides 100% efficient combustion. provides. Thanks to its innovative design, a powerful and effective warm-up at all times minimizes energy losses. High efficiency, maximum Stay one step ahead for performance now!
With the boiler sensor and boiler pump start-up feature, your boiler is now guaranteed to produce hot water in summer and winter! Warm all year round, in all seasons This smart system that meets your water needs offers energy efficiency and superior makes your life easier with its performance. Always enjoy hot water Take it out, don't compromise on your comfort!
Thanks to the Sleep Mode, your boiler is automatically ignited and can be used for long periods of time. certain hours to keep the fire alive during waiting periods periods. This innovative feature ensures uninterrupted comfort and offers maximum energy savings. Your heat is always at the ideal level, energy your productivity at the highest level!
MODEL
KOZ WOOD 25
KOZ WOOD 25
KOZ WOOD 40
KOZ WOOD 60
KOZ WOOD 80
| Capacity kW | 29 |
| Width (A) mm | 750 |
| Length (B) mm | 1690 |
| Height (C) mm | 1700 |
| Cold Water Inlet Height (D) mm | 560 |
| Hot Water Outlet Height (E) mm | 1700 |
| Chimney Outlet Height (F) mm | 1700 |
| Chimney Diameter mm | 170 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 600 |
| Water Capacity lt | 110 |
| Tank Capacity lt | 220 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 45-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 180 |
| Fan Power W | 105 |
| Ash Box Capacity l | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Capacity kW | 46 |
| Width (A) mm | 750 |
| Length (B) mm | 1690 |
| Height (C) mm | 1800 |
| Cold Water Inlet Height (D) mm | 560 |
| Hot Water Outlet Height (E) mm | 1800 |
| Chimney Outlet Height (F) mm | 1800 |
| Chimney Diameter mm | 170 |
| Flow – Return inch | 1 |
| Expansion Outlet inch | 1 |
| Fill – Drain inch | 1/2 |
| Weight kg | 610 |
| Water Capacity lt | 125 |
| Chamber Capacity lt | 220 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 45-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 180 |
| Fan Power W | 105 |
| Ash Box Capacity l | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Capacity kW | 69 |
| Width (A) mm | 780 |
| Length (B) mm | 1940 |
| Height (C) mm | 1730 |
| Cold Water Inlet Height (D) mm | 560 |
| Hot Water Outlet Height (E) mm | 1730 |
| Chimney Outlet Height (F) mm | 1780 |
| Chimney Diameter mm | 220 |
| Flow – Return inch | 2 |
| Expansion Outlet inch | 1 |
| Fill – Drain inch | 1 |
| Weight kg | 750 |
| Water Capacity lt | 165 |
| Chamber Capacity lt | 220 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 45-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 180 |
| Fan Power W | 105 |
| Ash Box Capacity l | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
| Capacity kW | 93 |
| Width (A) mm | 780 |
| Length (B) mm | 1940 |
| Height (C) mm | 1840 |
| Cold Water Inlet Height (D) mm | 560 |
| Hot Water Outlet Height (E) mm | 1840 |
| Chimney Outlet Height (F) mm | 1840 |
| Chimney Diameter mm | 220 |
| Flow – Return inch | 2 |
| Expansion Outlet inch | 1 |
| Fill – Drain inch | 1 |
| Weight kg | 800 |
| Water Capacity lt | 190 |
| Chamber Capacity lt | 220 |
| Max. Operating Pressure bar | 3 |
| Test Pressure bar | 4.3 |
| Temperature Control Range °C | 45-85 |
| Max. Operating Temperature °C | 90 |
| Reducer Power W | 180 |
| Fan Power W | 240 |
| Ash Box Capacity l | 50 |
| Operating Voltage and Frequency V/Hz | 230/50 |
| Operating Current A | 16 |
