Aqueous System

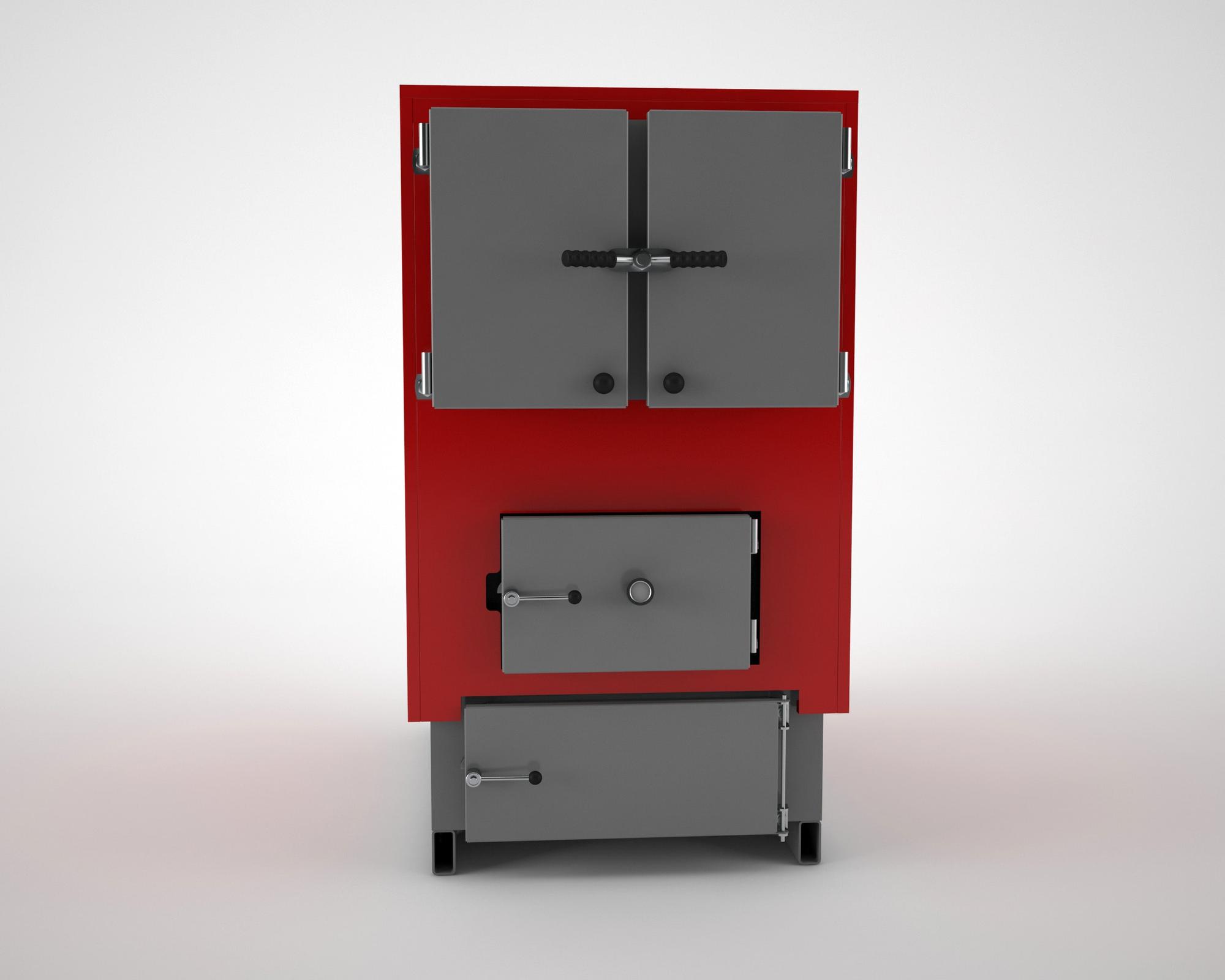

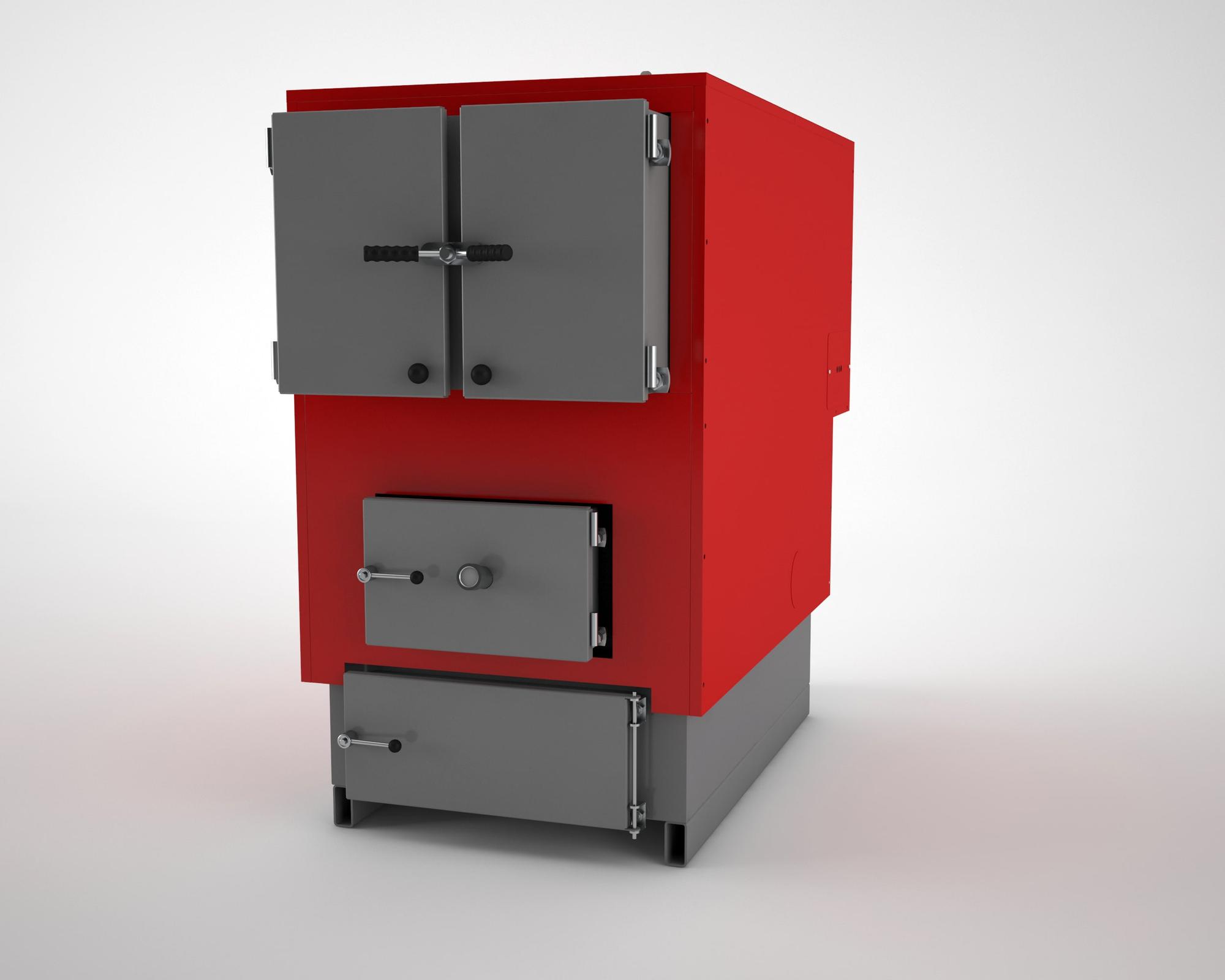

Koz X

Millionaire KOZ-X Series offers a flexible and efficient heating solution with its ability to burn coal and wood.

While optimizing fuel consumption thanks to its highly efficient combustion system, its robust and durable structure ensures long-lasting use.

It is an economical and safe heating option with its digital control panel and environmentally friendly design.

Color Option

Red

Our product provides economy
with its highly efficient housing design and
.

Whatsapp Support

General Features

Technical Specifications

Documents

Images & Videos

Thanks to the ability of the boiler to burn coal and wood, you can choose your fuel according to your needs. It offers both an economical and environmentally friendly heating solution. The combustion chamber compatible with different fuel types offers ease of use while providing high efficient heating.

Coal and Wood Burning

Thanks to the ability of the boiler to burn coal and wood, you can choose your fuel according to your needs. It offers both an economical and environmentally friendly heating solution. The combustion chamber compatible with different fuel types offers ease of use while providing high efficient heating.

Coal and Wood Burning

Thanks to the ability of the boiler to burn coal and wood, you can choose your fuel according to your needs. It offers both an economical and environmentally friendly heating solution. The combustion chamber compatible with different fuel types offers ease of use while providing high efficient heating.

Coal and Wood Burning

MODEL

Capacity kW	150
Width (A) mm	920
Length (B) mm	2000
Height (C) mm	1600
Cold Water Inlet Height (D) mm	530
Hot Water Outlet Height (E) mm	1600
Flue Outlet Height (F) mm	1260
Flue Diameter mm	250
Flow – Return inch	2 1/2
Expansion Outlet inch	1 1/2
Fill – Drain inch	1/2
Weight kg	750
Water Capacity lt	350
Max. Operating Pressure bar	3
Test Pressure bar	4.3
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	240
Operating Voltage and Frequency V/Hz	230/50
Operating Current A	16

Capacity kW	174
Width (A) mm	1150
Length (B) mm	2100
Height (C) mm	1750
Cold Water Inlet Height (D) mm	500
Hot Water Outlet Height (E) mm	1750
Flue Outlet Height (F) mm	1300
Flue Diameter mm	300
Flow – Return inch	2 1/2
Expansion Outlet inch	1 1/2
Fill – Drain inch	1
Weight kg	1150
Water Capacity lt	470
Max. Operating Pressure bar	3
Test Pressure bar	4.3
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	16

Capacity kW	209
Width (A) mm	1150
Length (B) mm	2100
Height (C) mm	1850
Cold Water Inlet Height (D) mm	500
Hot Water Outlet Height (E) mm	1850
Flue Outlet Height (F) mm	1400
Flue Diameter mm	300
Flow – Return inch	2 1/2
Expansion Outlet inch	1 1/2
Fill – Drain inch	1
Weight kg	1300
Water Capacity lt	520
Max. Operating Pressure bar	3
Test Pressure bar	4.3
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	16

Capacity kW	232
Width (A) mm	1150
Length (B) mm	2250
Height (C) mm	1850
Cold Water Inlet Height (D) mm	500
Hot Water Outlet Height (E) mm	1850
Flue Outlet Height (F) mm	1400
Flue Diameter mm	300
Flow – Return inch	2 1/2
Expansion Outlet inch	1 1/2
Fill – Drain inch	1
Weight kg	1450
Water Capacity lt	585
Max. Operating Pressure bar	3
Test Pressure bar	4.3
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	16

Capacity kW	290
Width (A) mm	1500
Length (B) mm	2300
Height (C) mm	1950
Cold Water Inlet Height (D) mm	650
Hot Water Outlet Height (E) mm	2050
Flue Outlet Height (F) mm	1600
Flue Diameter mm	300
Flow – Return inch	2 1/2
Expansion Outlet inch	1 1/2
Fill – Drain inch	1
Weight kg	1716
Water Capacity lt	1050
Max. Operating Pressure bar	3
Test Pressure bar	4.3
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	16

Capacity kW	348
Width (A) mm	1600
Length (B) mm	2850
Height (C) mm	2250
Cold Water Inlet Height (D) mm	720
Hot Water Outlet Height (E) mm	2250
Flue Outlet Height (F) mm	1750
Flue Diameter mm	400
Flow – Return inch	3
Expansion Outlet inch	2
Fill – Drain inch	2
Weight kg	2850
Water Capacity lt	1350
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	465
Width (A) mm	1600
Length (B) mm	3250
Height (C) mm	2250
Cold Water Inlet Height (D) mm	720
Hot Water Outlet Height (E) mm	2250
Flue Outlet Height (F) mm	1750
Flue Diameter mm	400
Flow – Return inch	3
Expansion Outlet inch	2
Fill – Drain inch	2
Weight kg	3450
Water Capacity lt	1750
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	581
Width (A) mm	1850
Length (B) mm	3550
Height (C) mm	2550
Cold Water Inlet Height (D) mm	730
Hot Water Outlet Height (E) mm	2550
Flue Outlet Height (F) mm	1950
Flue Diameter mm	500
Flow – Return inch	4
Expansion Outlet inch	2
Fill – Drain inch	2
Weight kg	4150
Water Capacity lt	2500
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	697
Width (A) mm	1850
Length (B) mm	4000
Height (C) mm	2550
Cold Water Inlet Height (D) mm	730
Hot Water Outlet Height (E) mm	2550
Flue Outlet Height (F) mm	1950
Flue Diameter mm	500
Flow – Return inch	4
Expansion Outlet inch	2
Fill – Drain inch	2
Weight kg	4610
Water Capacity lt	3190
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	814
Width (A) mm	2050
Length (B) mm	4000
Height (C) mm	2800
Cold Water Inlet Height (D) mm	750
Hot Water Outlet Height (E) mm	2800
Flue Outlet Height (F) mm	2250
Flue Diameter mm	600
Flow – Return inch	5
Expansion Outlet inch	2 1/2
Fill – Drain inch	2 1/2
Weight kg	5100
Water Capacity lt	3500
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	930
Width (A) mm	2050
Length (B) mm	4250
Height (C) mm	2800
Cold Water Inlet Height (D) mm	750
Hot Water Outlet Height (E) mm	2800
Flue Outlet Height (F) mm	2250
Flue Diameter mm	600
Flow – Return inch	5
Expansion Outlet inch	2 1/2
Fill – Drain inch	2 1/2
Weight kg	5500
Water Capacity lt	3900
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18

Capacity kW	1160
Width (A) mm	2150
Length (B) mm	4500
Height (C) mm	3000
Cold Water Inlet Height (D) mm	800
Hot Water Outlet Height (E) mm	3000
Flue Outlet Height (F) mm	2350
Flue Diameter mm	600
Flow – Return inch	5
Expansion Outlet inch	2 1/2
Fill – Drain inch	2 1/2
Weight kg	6000
Water Capacity lt	4800
Max. Operating Pressure bar	5
Test Pressure bar	7.15
Temperature Control Range °C	45-85
Max. Operating Temperature °C	90
Fan Power W	2×550
Operating Voltage and Frequency V/Hz	380/50
Operating Current A	18
